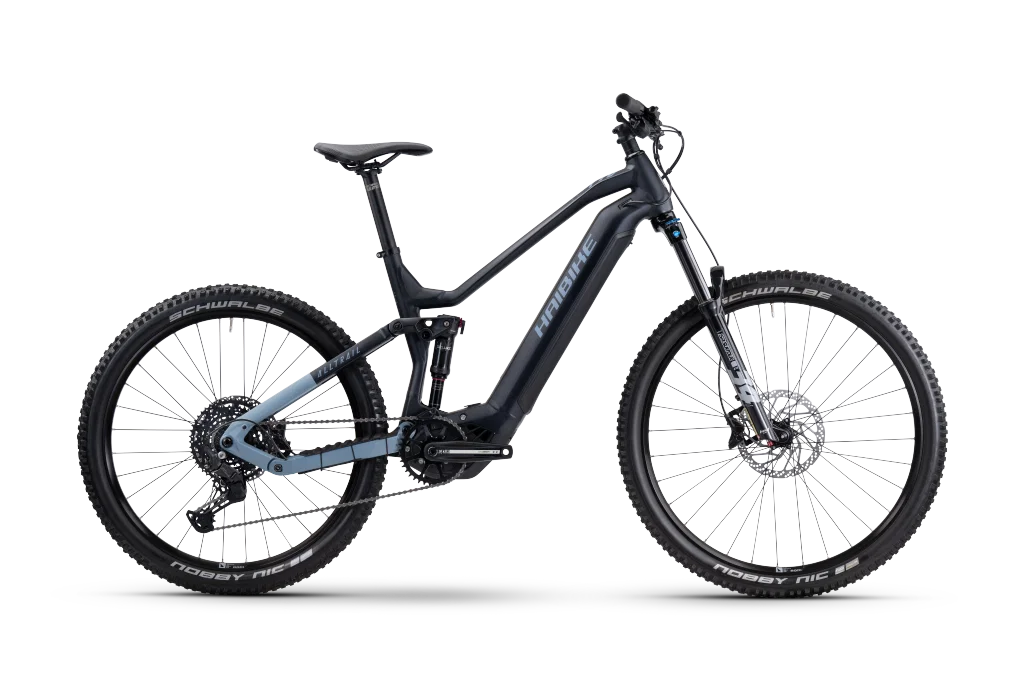

The new Haibike ALLTRAIL is a versatile and powerful full-suspension e-MTB, designed to tackle technical trails, long excursions, and mixed terrain with maximum comfort and control. Thanks to the 75Nm Yamaha PW-S2 motor and integrated 720Wh battery, it offers high range and smooth assistance even on the most demanding climbs.

The aluminum frame with 140mm travel, combined with the SR Suntour XCR34 Air Boost fork and RockShox Deluxe Select+ shock, ensures stability and precision on any terrain. The 10-speed Shimano CUES Linkglide drivetrain provides reliable shifting and long durability, while the Shimano MT420 4-piston brakes with 203mm rotors offer powerful and safe braking.

Ideal for those seeking a high-performance, reliable, and adventure-ready electric mountain bike.

Technical Sheet

Frame and Suspension

• Model: ALLTRAIL
• Frame: Haibike Aluminum, 140 mm travel
• Frame shape: 66_6
• Available sizes: 41 / 44 / 47 / 50 cm
• Permitted total weight: 120 kg
• Fork: SR Suntour SF23-XCR34 Air Boost DS 2CR, 140 mm
• Rear shock: RockShox Deluxe Select+ Trunnion DebonAir 205x57.5 mm
• Headset: Acros BlockLock 164° semi-integrated ZS44/ZS56

Drivetrain and Brakes

• Derailleur: Shimano CUES RD-U6000 Shadow+ 10-speed
• Shift lever: Shimano CUES SL-U6000-10R Rapidfire+
• Cassette: Shimano CUES CS-LG300-10 11-48T
• Chain: Shimano CN-LG500 Linkglide
• Chainring: Samox Direct Mount 38T
• Crankset: Samox ISIS Alloy
  • 160 mm (sizes S/M)
  • 165 mm (sizes L/XL)
• Chain guide: Winning WI-38L-95
• Derailleur hanger: SRAM UDH

Brakes

• Front brake: Shimano BR-MT420 4-piston
• Rear brake: Shimano BR-MT420 4-piston
• Brake levers: Shimano Deore BL-MT401
• Discs: Shimano SM-RT30 203 mm Centerlock (front/rear)

Motor and Battery

• Motor: Yamaha PW-S2
• Power: 250W
• Torque: 75 Nm
• Assisted speed: 25 km/h
• Battery: Yamaha InTube 720Wh
• Charger: Yamaha Standard Charger 4A
• Display: Yamaha A2 Display

Wheels and Tires

• Front hub: Shimano HB-TC500-15-B 15x110 mm
• Rear hub: Shimano FH-TC500-HM-B 12x148 mm
• Front rim: Rodi TRYP 30 Disc 30x622
• Rear rim: Rodi TRYP 30 Disc 30x584
• Front tire: Schwalbe Nobby Nic Performance ADDIX 60-622
• Rear tire: Schwalbe Nobby Nic Performance ADDIX 65-584

Components

• Saddle: Selle Royal Vivo
• Handlebar: Haibike TheBar++ 780 mm
• Grips: XLC MTB Grip Set VLG-1751D2
• Stem: Haibike JD-ST161A
  • 35 mm (size S)
  • 60 mm (sizes M-XL)

Geometry

• Seat tube length: 410 / 440 / 465 / 495 mm
• Seat tube angle: 74.7°
• Head tube length: 120 / 130 / 140 / 150 mm
• Head tube angle: 64.7° / 65.7°
• Chainstay: 460 mm
• Bottom bracket drop: 17 mm
• Reach: 425 / 436 / 454 / 471 mm
• Seat tube offset: 23 mm
