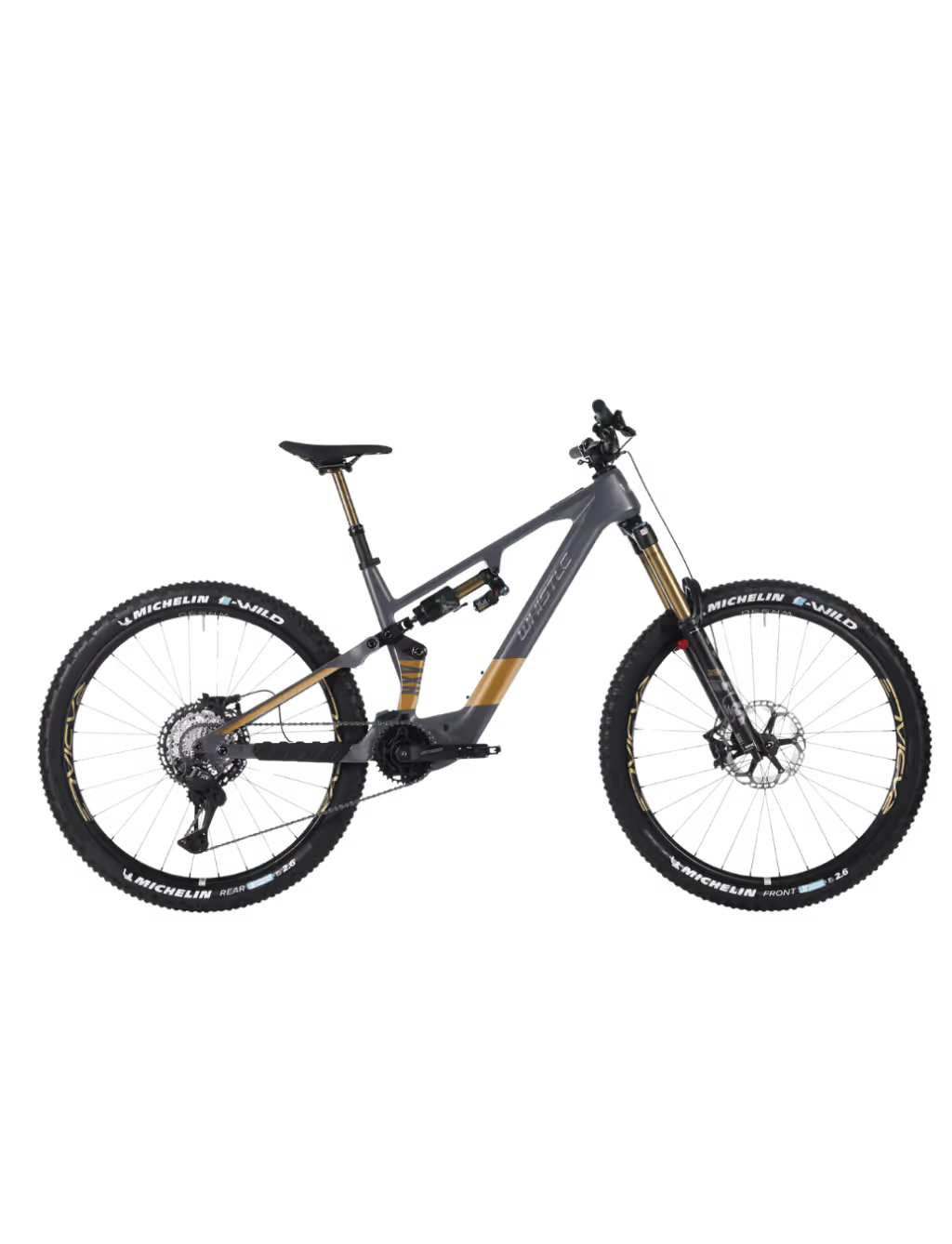

Whistle AXR C 10.6 800Wh Avinox M2S

🚵♂️ E-MTB Carbon 29” – Fox Factory – Shimano XT Di2 – 170/160 mm – Top-Tier Enduro

🔥 Full carbon electric MTB – Fox Factory suspension – Race performance

Full-suspension e-MTB in Toray T700 carbon, designed for enduro, aggressive trail, and bike park riding.
Top-of-the-line setup with Fox Factory suspension and Shimano Di2 electronic shifting.

✔️ Fox Factory Kashima Suspension
✔️ Shimano XT Di2 12s Electronic Shifting
✔️ Travel 170 mm front / 160 mm rear

🧩 Frame

• Material: Full Carbon Toray T700
• Wheels: 29”
• Battery: Integrated
• Standard:
  • Tapered
  • Internal cable routing
  • 12x148 mm E-Thru
  • UDH Hanger
• Rear Travel: 160 mm

⚡ Motor and Battery

• Motor: Avinox M2S
• Rated Torque: 130 Nm
• Peak Torque: 150 Nm
• Display: Avinox DP100
• Battery: 800 Wh integrated – high range
• Battery Weight: 3.74 kg
• Charger: DJI 12A (fast charging)

🛞 Suspension

• Fork: Fox 38 Float Factory eMTB+
  • Travel: 170 mm
  • System: Air
  • Cartridge: GRIP X
  • Standard: 15x110 mm
• Shock: Fox Float X2 Factory
  • Technology: EVOL
  • Adjustments: LSR / HSR
  • Lever: 2 positions
  • Size: 230x65

⚙️ Drivetrain

• Crankset: FSA CK320 – 34T MegaTooth
• Derailleur: Shimano XT Di2 12 speed
• Shifters: Shimano XT Di2
• Cassette: Shimano 10-51T

🛑 Brakes

• Brakes: Shimano XT 4 piston
• Rotors: 203 mm front / rear
  ✔️ Powerful and modulable braking even on demanding descents

🛞 Wheels and Tires

• Wheels: Radiale WX30 – Ratchet 36T
• Tires: Michelin E-Wild Competition Line
• Size: 29” x 2.60
• Configuration: Tubeless Ready
  ✔️ High grip on mud, rock and technical trails

🪑 Components

• Seatpost: Fox Transfer Factory Kashima (dropper)
• Saddle: Selle Royal SRX
• Handlebar: 780 mm – 15 mm rise
• Stem: 35 mm (S-M) / 50 mm (L-XL)
• Pedals: Aluminum MTB

📏 General Specifications

• Weight: 22.4 kg
• Available Sizes: 40 / 44 / 48
• Wheels: 29”
• Speed: 12
• Charging Time: approx. 2.5 hours

💡 Why choose this e-MTB

• 🏁 Top-of-the-line Fox Factory (Kashima) setup
• ⚡ Ultra-precise Di2 electronic shifting
• 🪶 Lightweight and high-performance carbon frame
• 🛞 Perfect setup for enduro and aggressive trails
• 🔋 Fast charging and long range
•
