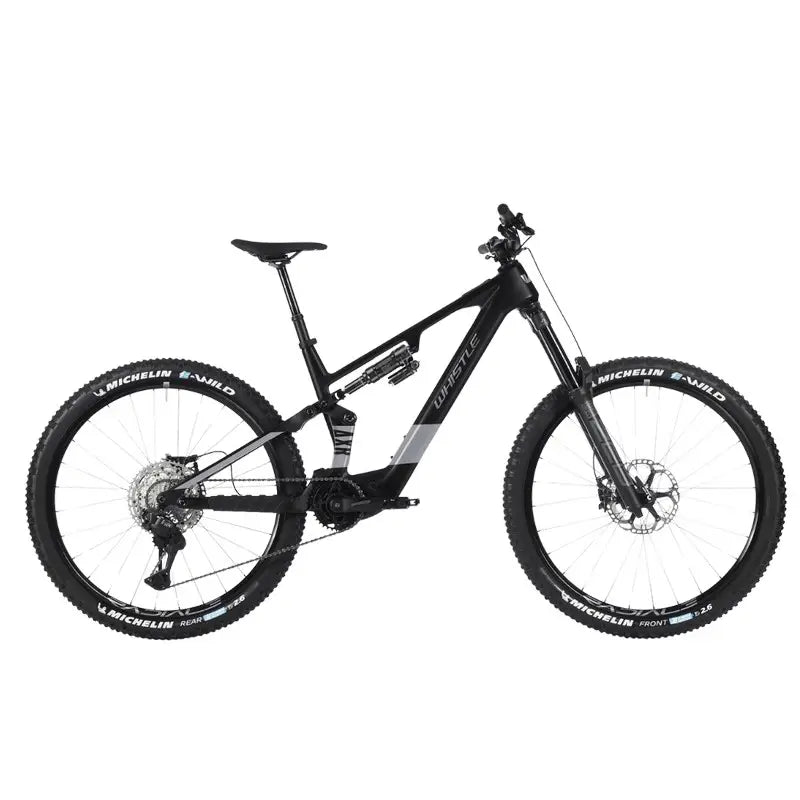

Whistle AXR C 8.6 800Wh Avinox M2S Black/Grey

Designed to tackle the most technical trails without compromise, the AXR is a next-generation enduro e-bike, developed on a full carbon frame. At the heart of the project is the advanced integration of the AVINOX system, designed to offer the perfect balance between power, safety, and lightness.

With 170mm of front travel and 160mm at the rear, a carbon chainstay, and a 64° head angle, the AXR ensures stability, precision, and control even in the most extreme situations. The geometry and technical solutions adopted allow for reactive and safe riding, ideal for challenging descents and highly technical sections.

The frame is designed to house the 800 Wh AVINOX battery in a fully integrated manner, without the need for modifications, contributing to a clean and functional design. The shock absorber, positioned parallel to the top tube, optimizes the response to stresses and improves the overall balance of the structure.

The handlebar controls, connected via Bluetooth technology, ensure immediate and wireless management of the electrical system. Their ergonomics and intuitive positioning allow for quick access, increasing safety and readiness in every situation.

The total integration of cables within the head tube protects components from external agents and contributes to a clean and modern aesthetic. The compact design of the down tube, combined with advanced construction solutions, makes the bike solid, precise, and highly performing.

AXR is more than just an e-bike: it's a machine designed for those who approach enduro with determination, technique, and a desire to push beyond every limit.

🚵♂️ Carbon E-MTB 29” – 800Wh – Shimano XT Di2 – RockShox ZEB – Full Suspension
🔥 Top-of-the-range E-bike MTB – 150Nm – 170/160 mm travel – ready for enduro and trail

✔️ GUARANTEED USED
✔️ Motor up to 150 Nm of torque
✔️ Shimano XT Di2 12s electronic drivetrain
✔️ Perfect for enduro, bike parks, and challenging off-road

📏 General data
Color: Black / Gray
Wheels: 29”
Weight: 22.5 kg
⚡ Motor and battery
Motor: Avinox M2S
Nominal torque: 130 Nm
Peak torque: 150 Nm
Display: Avinox DP100
Battery: 800 Wh integrated – high autonomy
Battery weight: 3.74 kg
Charger: DJI 12A (fast charging)
🪶 Frame
Material: Toray T700 Carbon
Rear travel: 160 mm
Standard:
Tapered
Internal cable routing
12x148 mm E-Thru
UDH hanger
Integrated battery
🛠️ Suspension
Fork: RockShox ZEB RC eMTB
Travel: 170 mm
Technology: DebonAir+
Axle: 15x110 mm
Shock absorber: RockShox Super Deluxe
DebonAir Progressive
Size: 230x65
⚙️ Drivetrain
Derailleur: Shimano XT RD-M8250 Di2 (12s electronic)
Shifter: Shimano Deore Di2
Cassette: Shimano 10-51
Chain: Shimano SLX
Chainring: 34T
Crankset: FSA
🛑 Brakes
Brakes: Shimano XT 4-piston – maximum power
Discs: 203 mm front / rear
🛞 Wheels
Rims: Radiale X30 – tubeless ready
Hubs: Shimano (Microspline)
Tires: Michelin E-Wild 2.60”
✔️ Excellent for enduro, mud, and technical terrain
🧩 Components
Handlebar: 780 mm
Stem: 35 mm (S-M)
Saddle: Selle Royal SRX
Seatpost: Dropper telescopic with remote control
💡 Why choose this e-MTB
🚀 Super powerful motor (150 Nm) among the best performing on the market
🔋 800Wh battery for long rides
🧠 Precise and fast Di2 electronic shifting
🪶 Lightweight and responsive carbon frame
